Photovoltaic cable
Share to
- Product Description
-
Product features:
Photovoltaic cables are electron-beam cross-linked cables rated for temperatures up to 120°C, made from radiation-crosslinked materials that offer superior mechanical strength. The cross-linking process transforms the chemical structure of polymers, converting initially meltable thermoplastic materials into non-meltable elastomeric ones. This radiation-induced cross-linking significantly enhances the cable insulation material’s thermal, mechanical, and chemical properties, enabling it to withstand harsh environmental conditions and resist severe mechanical stress in connected equipment. According to the international IEC216 standard, our company’s photovoltaic cables boast an outdoor service life that is 8 times longer than rubber cables and an impressive 32 times longer than PVC cables. These cables and components not only deliver exceptional resistance to weathering, UV exposure, and ozone degradation but also endure a much broader temperature range—from -40°C to 125°C.
Model specifications:

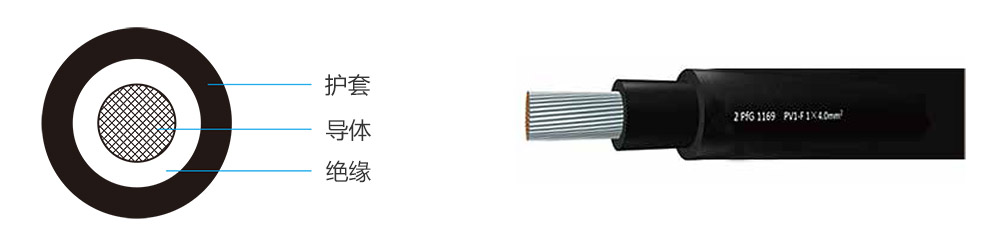

Schematic Diagram of Cable Structure for PV1-F Photovoltaic System
Product Name
Photovoltaic cable
Model
PV1-F
Specifications
2.5 mm², 4 mm², 6 mm², 10 mm², 16 mm²,
Rated Voltage
AC 0.6/1kV DC 1.8kV
Conductor
Tin-plated copper wire
Insulating material
Radiation-crosslinked polyolefin insulation
Sheath material
Radiation-crosslinked polyolefin insulation
Rated temperature
-40°C to 120°C
